• Applicable Cabinet Size: Capacity: 22lb /10kg; Recommended Door Weight: 8-10 lbs; Thickness: ≥0.9in / 22mm; Interior Length: 19.69-31.49in / 50-80cm; Interior Width: ≥7.48in /19cm; Interior Height: 14-16.2 in / 35-41 cm; Cabinet top to ceiling: ≥17in / 43cm is better
• NOTE: If you want the interior of the cabinet to be fully displayed without being obscured by the door panel, make sure that: 1) the door height is less than 17.7 in / 45 cm; 2) the resvered height is more than 17 in / 43 cm
• Hydraulic Damper: The bases built-in hydraulic buffer, closing has cushioning effect. Because hydraulic oil is tight at beginning, especially in winter, opening and closing force will be relatively heavy, too light a door can also increase resistance, it will become better after a period of use
• Stretchable & Adjustable: The synchronous rod is 19.49in /49.5cm in length and can be extended to 31.69in /80.5cm with two perforated flat iron bars. Rotate the screw in the bracket base to fine-tune the force of the hydraulic damping

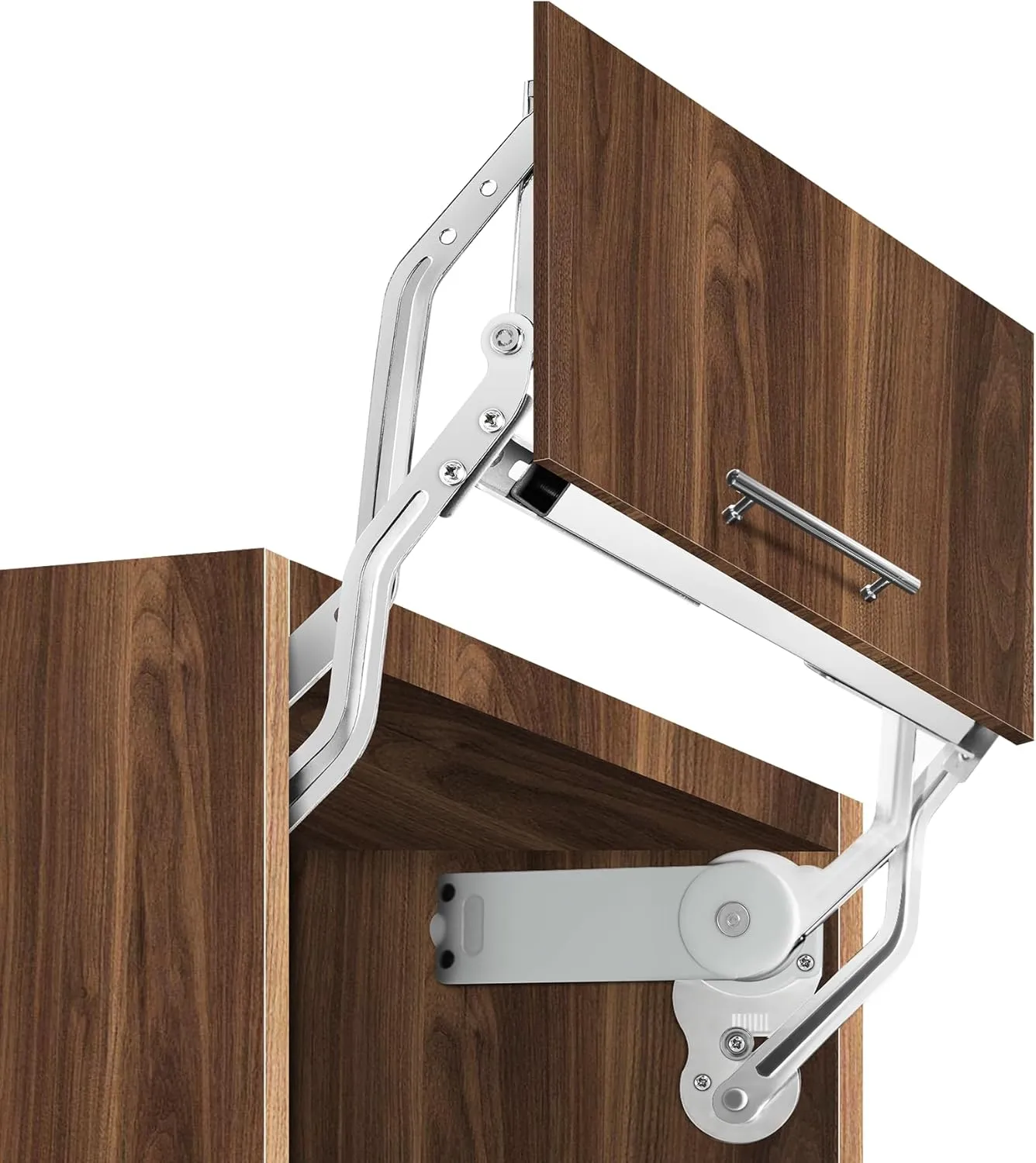

• Application: Our lift up cabinet hinges are suitable for solid wood doors and aluminum frame doors, not suitable for glass doors. They can be used in closets, kitchen, cloakroom, bedroom, microwave cabinets, dishwasher cabinets and more
