- PCIE 4.0 X16 graphics card extension cable, 32GB/S bidirectional bandwidth.
- Extension Cable Usage: The PCIE card originally plugged directly into the motherboard, through the extension cable to replace the location for installation.

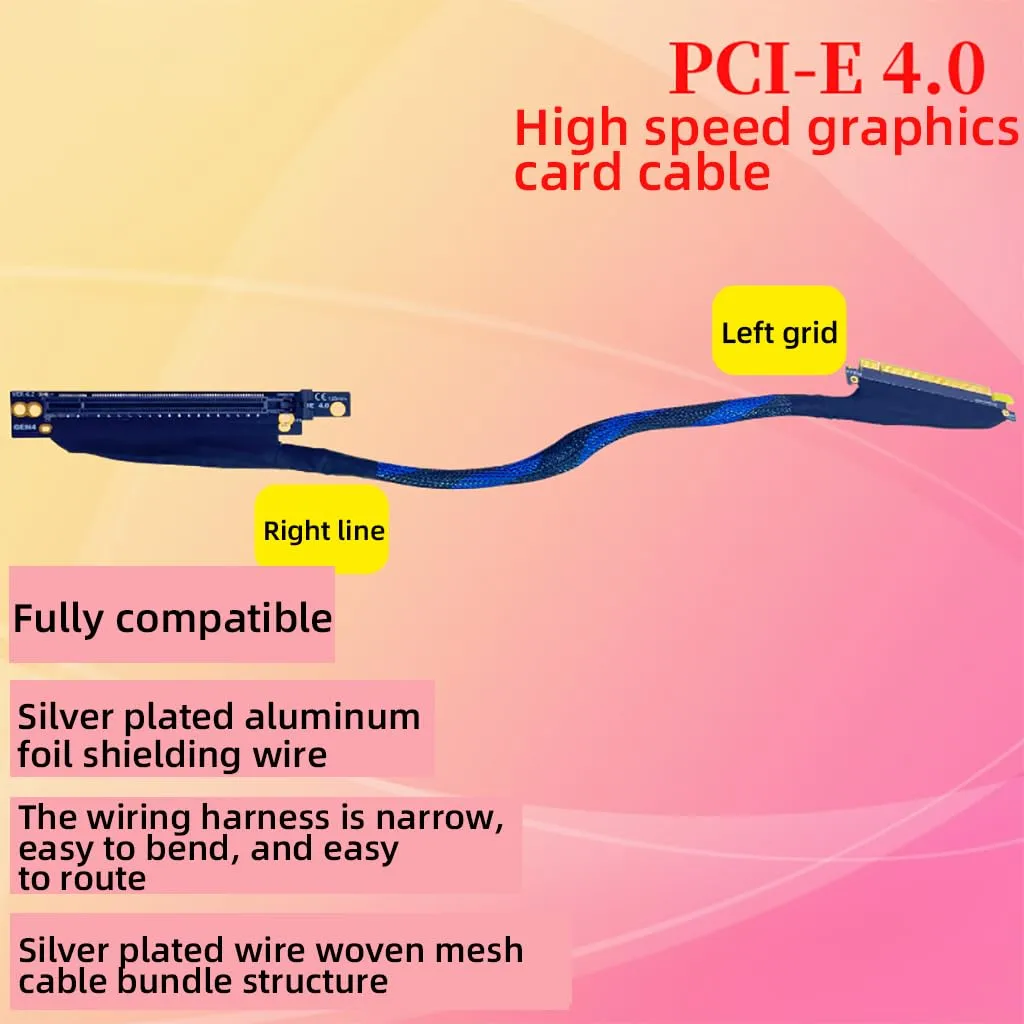

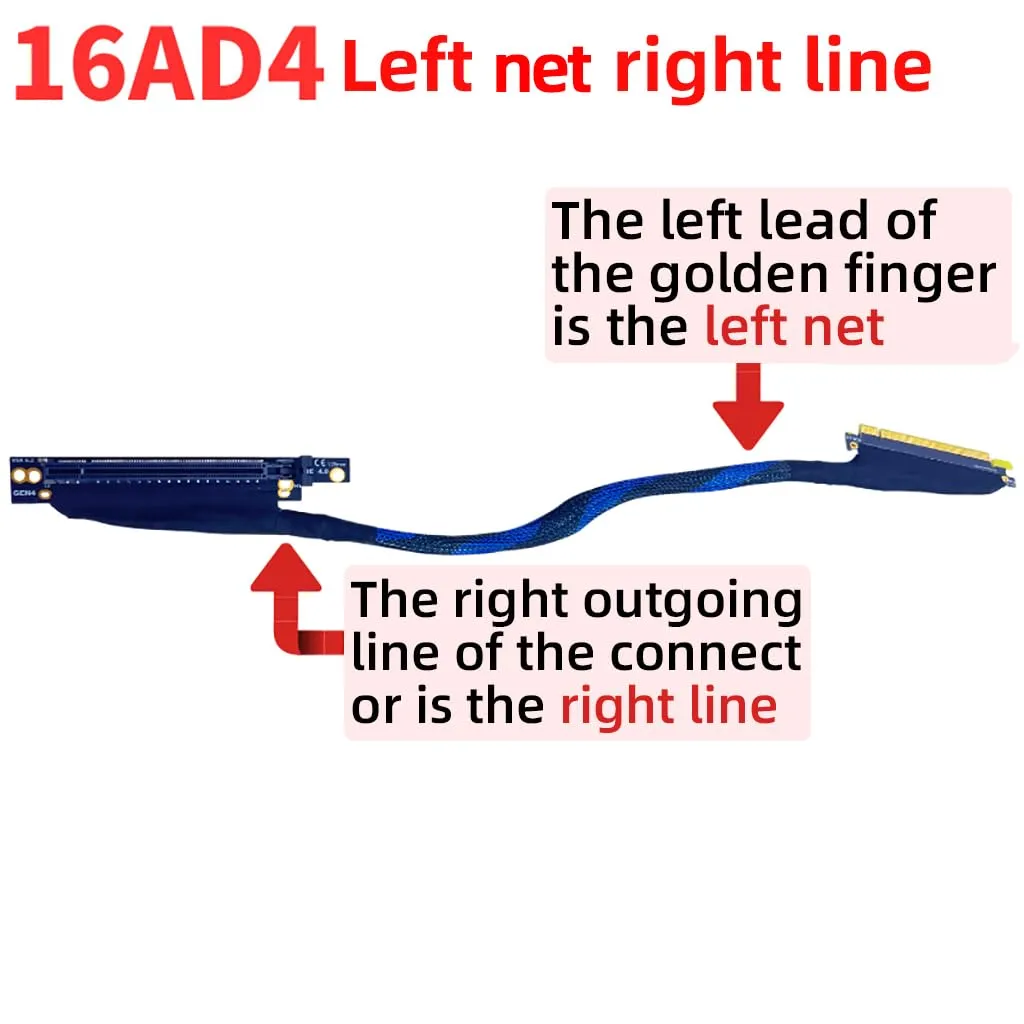

- Direction Detail：Left and right indicate the direction of the wire, with the board and slot notch on the left as the positive direction. Mesh and wire indicate braided mesh and silver-plated wire.
- The Last Letter 4ZG Means PCIE 4.0: 4 Indicates silver-plated wire, Z indicates ultra-narrow silver-plated wire, and G indicates silicone silver-plated wire.
- Widely Application: Support GPU cards, display cards, graphics cards, computing cards, accelerator cards, network cards, sound cards, capture cards, solid state drives, array cards, etc.

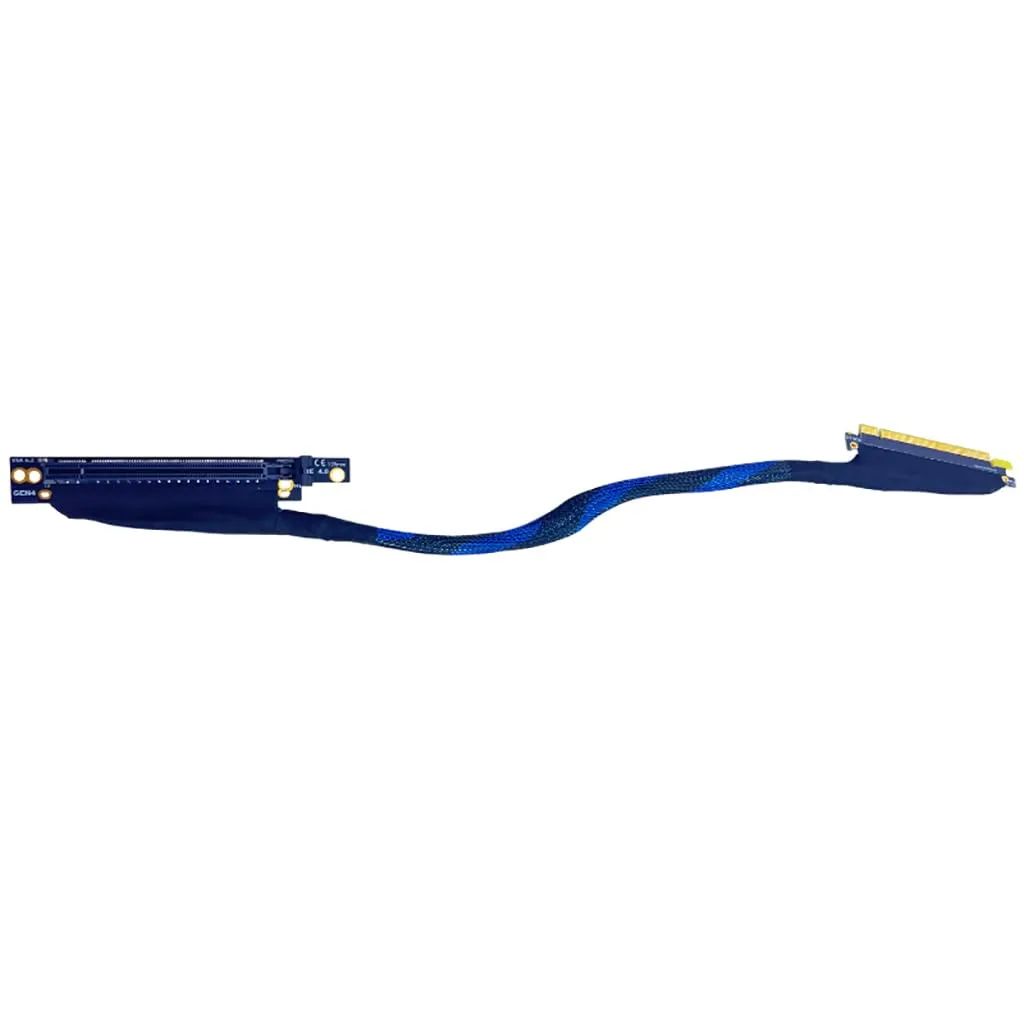

JMT PCIE 4.0 X16 Extension Cable 270 Degree 32GBS GEN4 Braided Mesh Harness Riser for AI Server Graphics Card Bendable GPU Adapter 16AD4
Model Detail:
AB-(Slot 180 degree flat straight model)
AC-(Slot 90 degree right angle model)
AD -(Slot 270 degree reverse right angle model)
The last letter 4\Z\G means PCIE 4.0: 4 indicates silver-plated wire, Z indicates ultra-narrow silver-plated wire, and G indicates silicone silver-plated wire.
Features:
1, PCIE 4.0 X16 graphics card extension cable, 32GB\S bidirectional bandwidth.
2, Silver-plated cable, aluminum foil shielding, braided mesh harness structure, high speed and no loss.
3, Support PCIE 4.0 devices, backward compatible with PCIE 3.0.
4, Gold finger immersion gold process, thickness 5U, using high-density low-impedance circuit board.
5, The male header is dwarfed to reduce the height of the occupancy.
6, the cable can be bent and folded, suitable for compact space chassis.
7, Support for graphics cards, network cards, solid state drives, capture cards, etc..
8, Full machine processing, VU adhesive protection welding.
9, Shortened circuit board dwarf design, does not take up more space
- Package Dimensions : 3.94 x 3.15 x 1.97 inches; 6 ounces
- Date First Available : May 14, 2025
- Manufacturer : JMT
- Country of Origin : China
